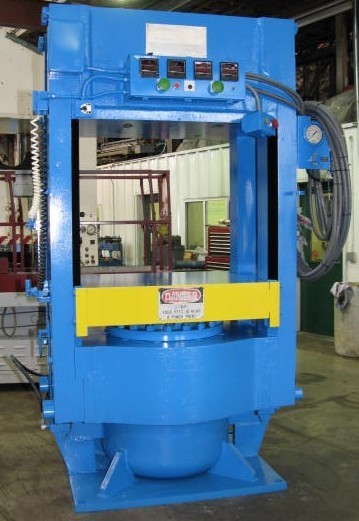

520 Ton EEMCO 41" x 33.5" hydraulic press
Archived listing photo
Auction ended
Final result not shown
Closed
Sat · May 23, 2026
Auction window
See it on eBay
Past Punch Presses auctions
This auction has ended. The link opens the listing on eBay, where the seller may relist or offer similar items.
Ships from
ZIP 493**
grpress
95 ratings · 100.00% positive
Description
From the sellerEEMCO. 520 ton. 41" left to right x 33.5" front to back. Slab-side press. 21" diameter ram rated to 3000 PSI with 19" max stroke. Max daylight of 34.5". Two 3.25" side cylinders. Prefill valve. 48" operator height. 50 HP hydraulic system: 200-gallon tank; Oilgear pump; 3 HP kidney circuit (water style cooler and filter); etc... Relay electrical control system wired for 460V; palm buttons; 4 temp controllers (no heated platens); E-stop; adjustable limit switches; adjustable pressure; etc... Press dimensions: 72" x 64" x 107" tall. Hydraulic unit/controls dimensions: 84" x 64" x 102" tall. Approx 28,000 total pounds. Loading costs included. All our machines are sold as-is.
